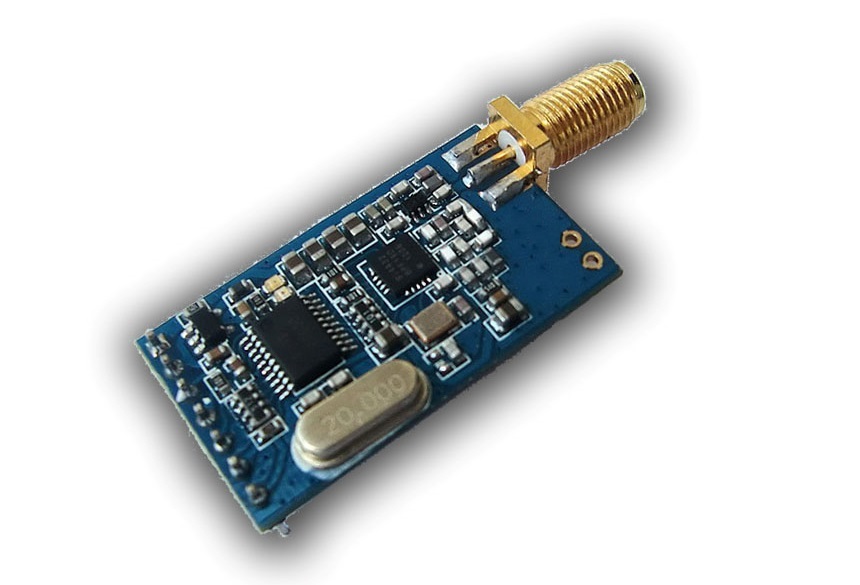

Arduino compatible XBee alternative RF4432

The RF4432 multi-channel transceiver represent a simple and inexpensive additional solution to the problem of wireless data transmission. The RF4432 transceiver modules are transparent (virtual wire) devices and therefore do not require any special drivers and no special data formatting is required.

THE PREVIOUS ONE Return The next one

    The RF4432 multi-channel transceiver represent a simple and inexpensive additional solution to the problem of wireless data transmission. The integrated microprocessor is accepting data entering from a TTL logic or RS-232 line, creating packets, avoiding user to write sofware routines for the transmission management. The RF4432 transceiver modules are transparent (virtual wire) devices and therefore do not require any special drivers and no special data formatting is required.


    Feature:



    • RF line-in-sight range: 1800meters (@1200bps)
    • Frequency: 410-440MHz or 470-510MHz or 850-890 MHz or 900-950MHz
    • Channel spacing: 200 KHz
    • Transparent -virtual wire- operation
    • Output Power: 100mW (adjustable)
    • Good reception sensitivity: -121dBm@1200bps
    • High efficient cyclic shift interleaving and FEC
    • GFSK modulation
    • Parameters setting by RF tool
    • 256Bytes data buffer

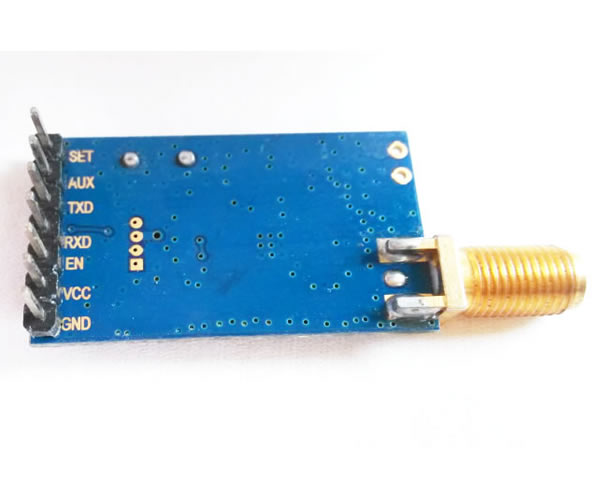

    • Interface: TTL/UART
    • Easy control working status through software
    • Power supply: 4.5V--5.5V (2.1V -- 3.7V optional)
    • Power Consumption: 28mA (RX), 100mA (TX), 3µA(Idle)
    • XBEE alternative
    • Operating temperature: -30℃—85℃
    • Size: 37.5*18.3*7.0mm
