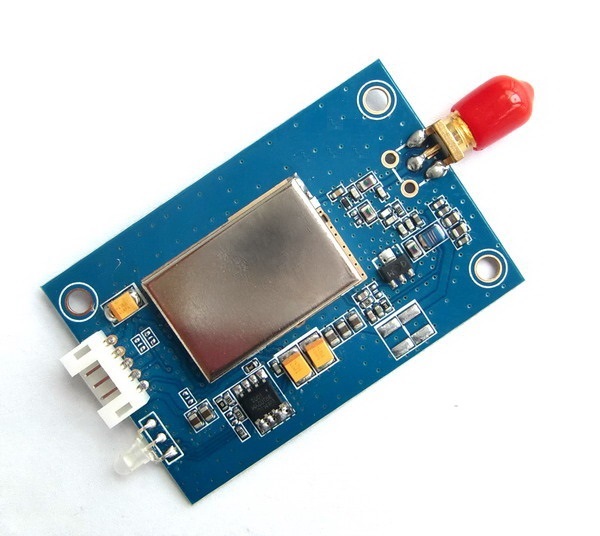

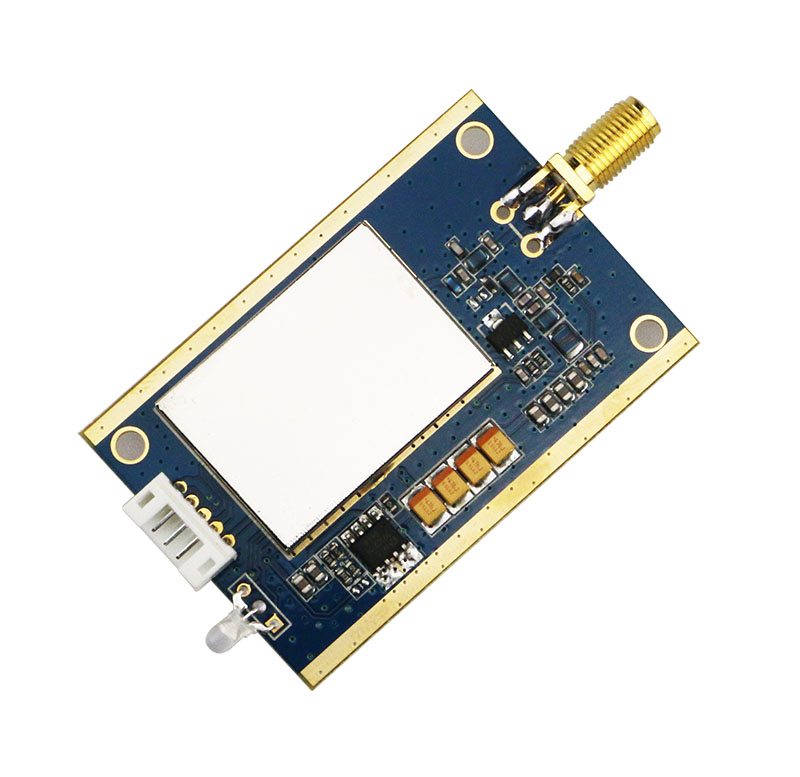

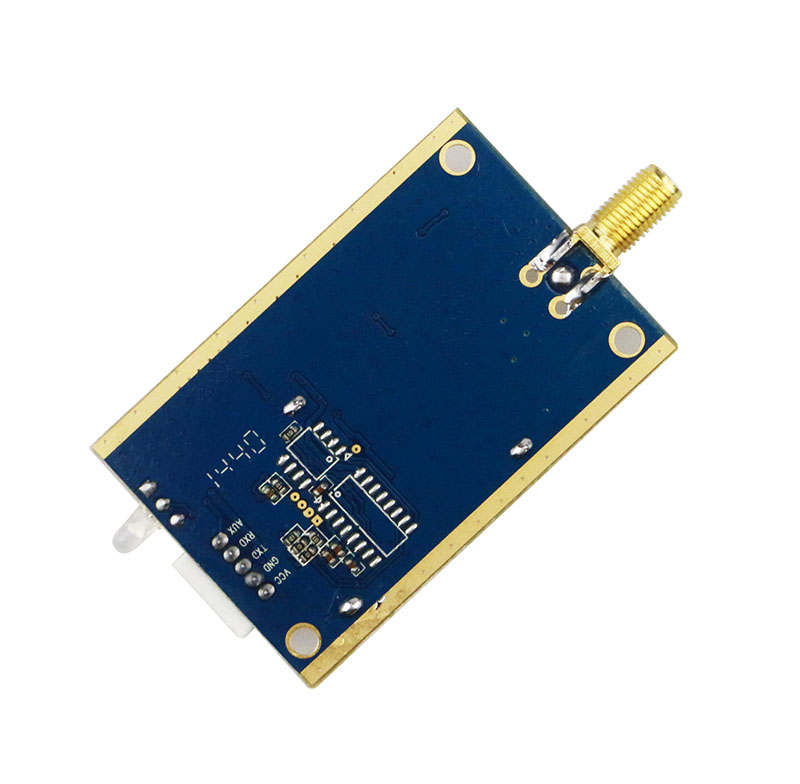

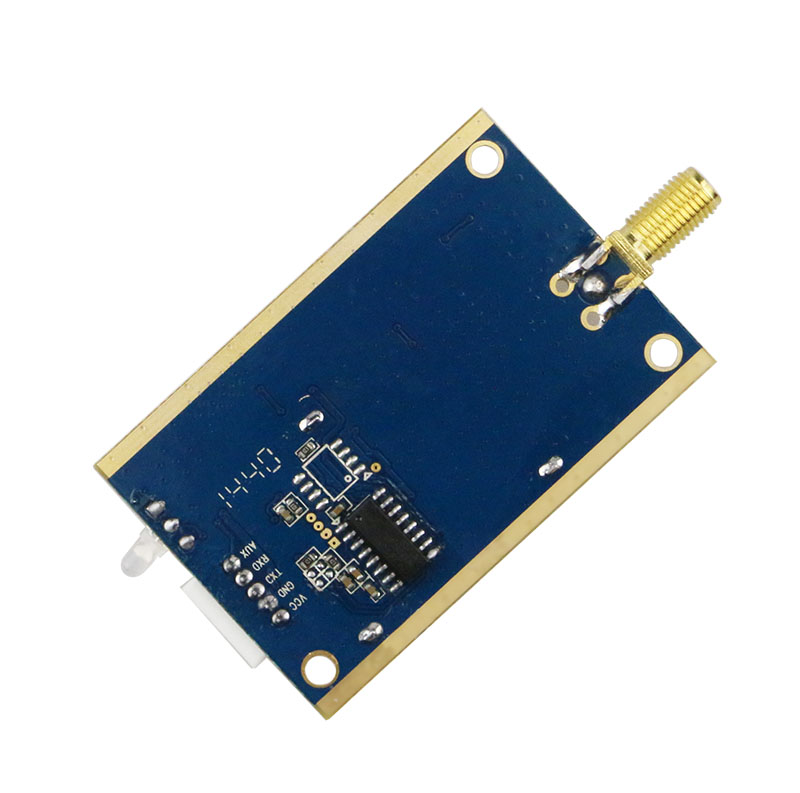

Medium power LoRa radio module: RF1276D27

RF1276D27 is medium power, high performance transparent two-way semi-duplex LoRa modulation transceiver with operation at 433/470 Mhz. It integrates with high speed MCU from ST and high performance RF IC SX1276. The LoRa modulation make the RF solution transmit signal under noise and the reception sensitivity is up to -148dBm.

THE PREVIOUS ONE Return The next one

    RF1276D27 is available as "Ready-to-use" , focuses on ease of integration even for non RF specialists, thus limit technological risks, while reducing the development time and cost.


    Feature：


    • 12000 meters of communication distance（600bps, urban area）, 18km in the wild.
    • Output power: Max 500mW (27dBm) (7 levels adjustable)
    • Air data rate: 300 - 19200bps, can be configured through RF tool
    • UART data rate: 1200 - 57600bps, can be configured through RF tool
    • Frequency: 410MHz - 460MHz , 470 - 510MHz，868MHz or 915MHz
    • Working Current: 450mA(TX), 24.2mA(RX), 220uA(Sleeping)
    • wireless RS232 / RS485 cable replacement
    • More than 32 channels
    • parity of series COM: 8E1/8N1/8O1
    • LoRa modulation
    • Receive sensitivity: -148dBm(@300bps)
    • UART/TTL, RS232, RS485
    • Exceed 256 bytes data buffer
    • Supply Voltage: 4.5 – 15.5V (the ripple less than ±100mV )
    • Simply tool for configuration
    • 125KHz Channel spacing(62.5KHz, 250KHz, 500KHz optional)
    • Dimension: 59.5mm x 39.6mm x 7.0mm
