Medium power High speed module RF4432D27

RF4432D27 is a low cost, medium power, high performance transparent two-way semi-duplex FSK modulation transceiver with operation at 433/470 Mhz. RF4432D27 can support UART baudrate up to 115200 bps and air data rate up to 57600bps.


THE PREVIOUS ONE Return The next one

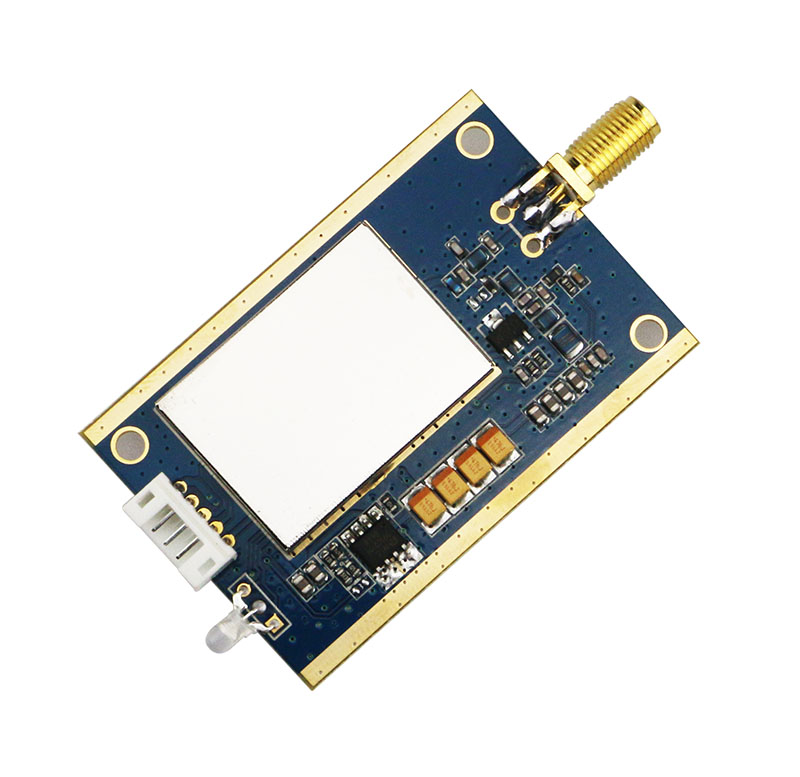

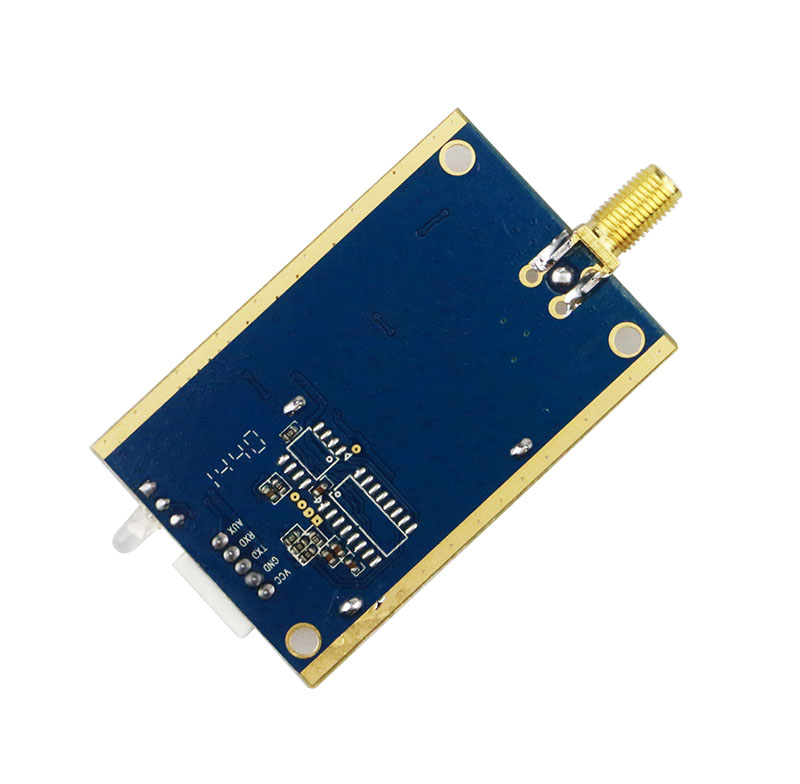

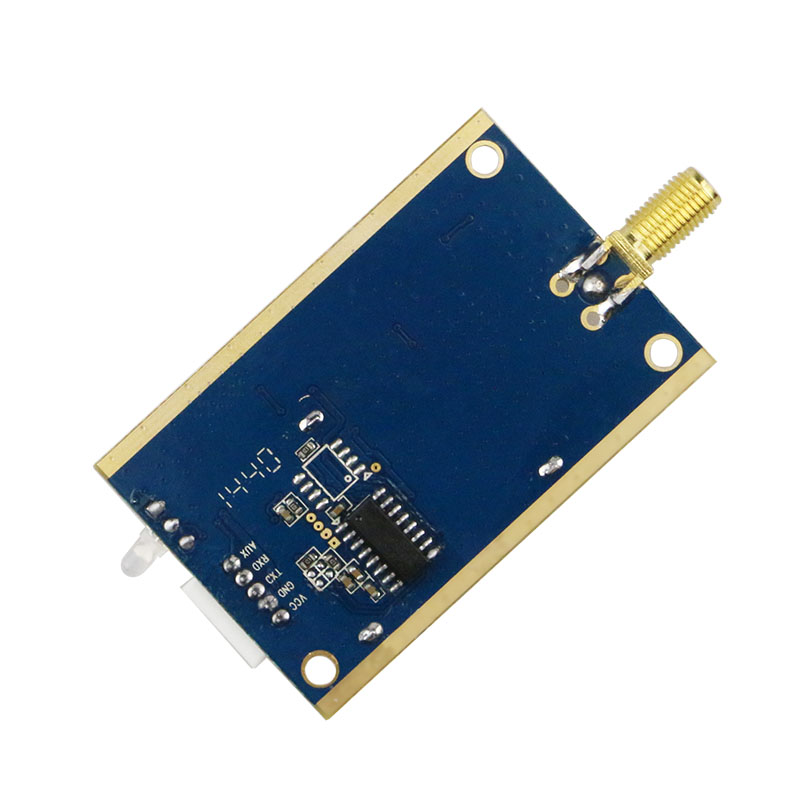

    RF4432D27 is a low cost, medium power, high performance transparent two-way semi-duplex FSK modulation transceiver with operation at 433/470 Mhz. It integrates with high speed MCU from ST and high performance RF IC Si4432. RF4432D27 can support UART baudrate up to 115200 bps and air data rate up to 57600bps.


    Feature:



    • RF line-in-sight range: 3000meters (@9600bps)
    • Frequency: 430-439MHz or 470MHz
    • Channel spacing: 250 KHz
    • Good reception sensitivity: -124dBm@1200bps
    • High efficient cyclic shift interleaving and FEC
    • GFSK modulation
    • Parameters setting by RF Tool
    • 2*256Bytes data buffer
    • Interface: TTL/UART. RS232 RS485
    • wireless RS232 / RS485 cable replacement
    • Power supply: 4.5--15.5V
    • Power Consumption: 25mA (RX), 500mA (TX), 10µA(Idle)
    • Operating temperature: -30℃—85℃
    • Size: 59.0mm * 38.9mm * 7.0mm
