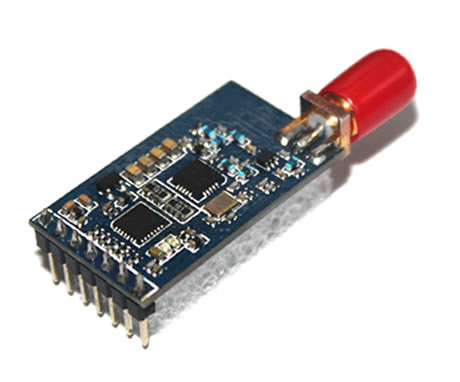

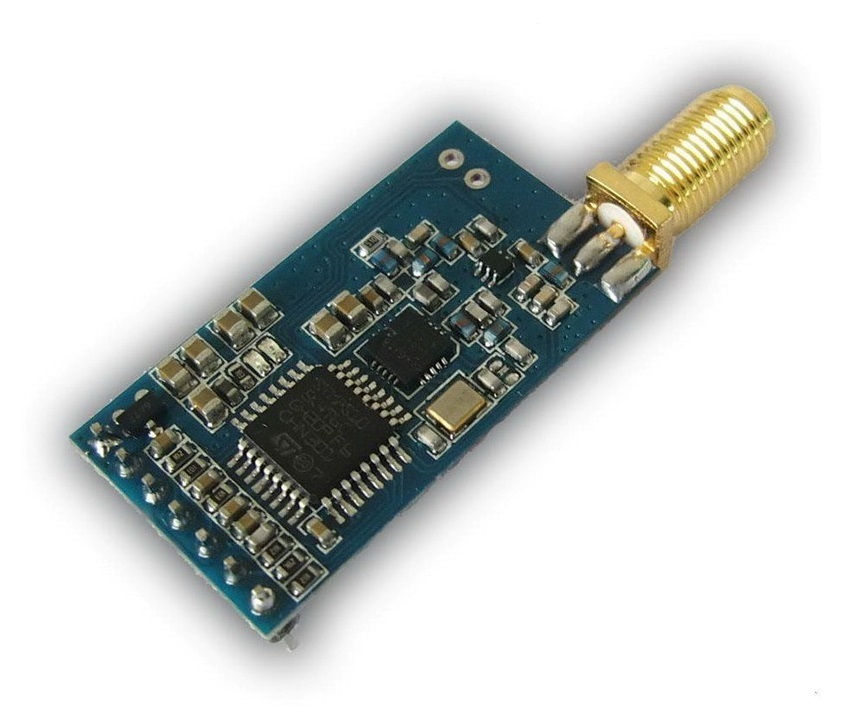

High performance GFSK module RF4463

RF4463 series is a low cost, high performance transparent two way semi-duplex GFSK transceiver with operation at 169/433/470/868/915 Mhz. It integrates with high speed MCU from S T and high performance RF IC Si4463.

THE PREVIOUS ONE Return The next one

    RF4463 series is a low cost, high performance transparent two way semi-duplex GFSK transceiver with operation at 169/433/470/868/915 Mhz. It integrates with high speed MCU from ST and high performance RF IC Si4463. The integrated microprocessor is accepting data entering from a TTL logic or RS-232 line, creating packets, avoiding user to write sofware routines for the transmission management. The RF4432 transceiver modules are transparent (virtual wire) devices and therefore do not require any special drivers and no special data formatting is required.


    Feature:



    • RF line-in-sight range: 1800meters (@1200bps)
    • Frequency: 410-440MHz or 470-510MHz or 850-890 MHz or 900-950MHz
    • Channel spacing: 200 KHz
    • Transparent -virtual wire- operation
    • Output Power: 100mW (adjustable)
    • Good reception sensitivity: -121dBm@1200bps
    • High efficient cyclic shift interleaving and FEC
    • GFSK modulation
    • Parameters setting by RF tool
    • 256Bytes data buffer
    • Interface: TTL/UART
    • Easy control working status through software
    • Power supply: 4.5V--5.5V (2.1V -- 3.7V optional)
    • Power Consumption: 28mA (RX), 100mA (TX), 3µA(Idle)
    • XBEE alternative
    • Operating temperature: -30℃—85℃
    • Size: 37.5*18.3*7.0mm
