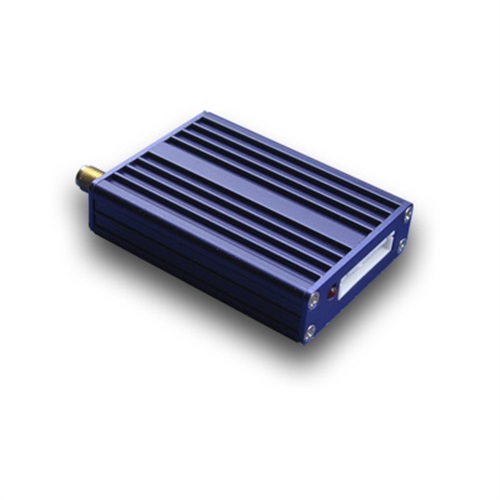

Compact SDR telemetry Modern: RF500S

The RF500S is a high performance radio modem supporting over the air data rates up to 57,600 bits per second. Its advanced data processing architecture allows high data throughput even on narrow 12.5 kHz channels.

THE PREVIOUS ONE Return The next one

    The RF500S is a high performance radio modem supporting over the air data rates up to 57,600 bits per second. Its advanced data processing architecture allows high data throughput even on narrow 12.5 kHz channels.

    The RF500S incorporates a wide range of high performance radio modules which meet the stringent demands of both domestic and international regulatory agencies. Advanced features including address selective store-and-forward data repeating, multilevel packet management, remote system adjustment.


    Key feature:
    • High speed channel rates in excess of 57,600 bits per second
    • Selectable operating modes for transparent and packet data operation
    • Store-and-forward data repeating for wide area coverage(4Km@9600bps)
    • Configurable RF output power levels(Max 500mW)
    • 5V-15V DC power supply
    • Watertight case option for field work and marine installations
    • RS485 port or RS232 port.
    • Low power consumption with power saving modes
