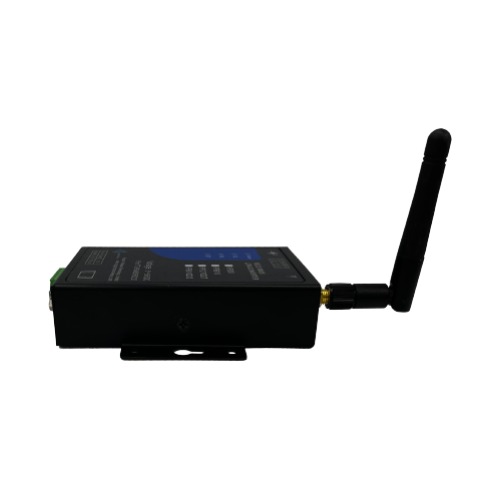

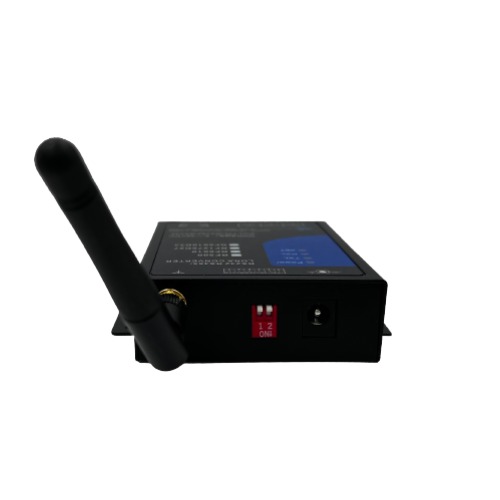

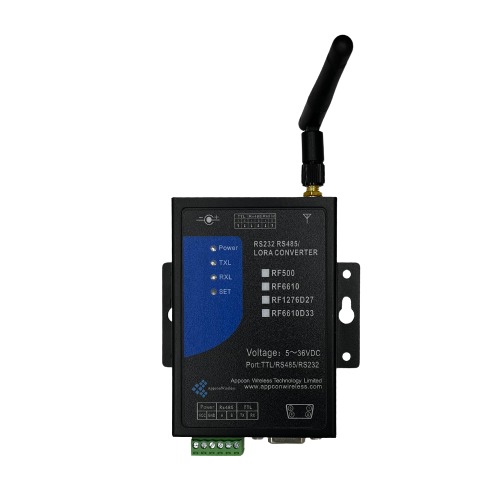

RF660 is a high performance LoRa modulation radio modem supporting over the air data rates up to 62500bps.Its advanced data processing architecture allows high data throughput and supports connect max 4 Modbus RTU sensors. The sensor data can send to master device periodically.
RF660 incorporates a wide range of high performance radio modules which meet the stringent demands of both domestic and international regulatory agencies. RF660 can support Center and Node mode that can support connect max 4 Modbus RTU sensors. It can form a simple point to multiple points sensor network with various sensors. Advanced features including address selective store-and-forward data repeating, multilevel packet management, remote system adjustment.
Key feature:
-
Selectable operating modes for transparent and packet data operation
-
Support Center and Node mode to form a simple sensor network
-
Store-and-forward data repeating for wide area coverage(20Km@1200bps)
-
Configurable RF output power levels(Max 2W@433MHz, Max 500mW@868MHz/915MHz)
-
Steel case option for field work and marine installations
-
RS485, RS232 and UART/TTL port by DIP switch changing.
-
Dymanic AES128 encryption
-
6V-35V DC power supply
-
Multi-mode LED front panel display for diagnostics, including port indication
-
Protocol DNP-3, Modbus and RS232 DP8 connector compatibility.
Application:
The RF660 is suited for applications in Utilities, Mining, Agriculture and Transport industries where reliable small area data transfer is critical. The data radio can be used in small scale telemetry systems and wireless sensor network, with almost any PLC, RTU, HMI or DCS vendor for monitoring and control of critical assets. The RF660 transparently moves data from end-to-end at speeds of up to 62500bps. The low cost radio can also perform as a store and forward repeater to extend the range and can also be used with other RF Innovations radio mdems and I/O modules.
