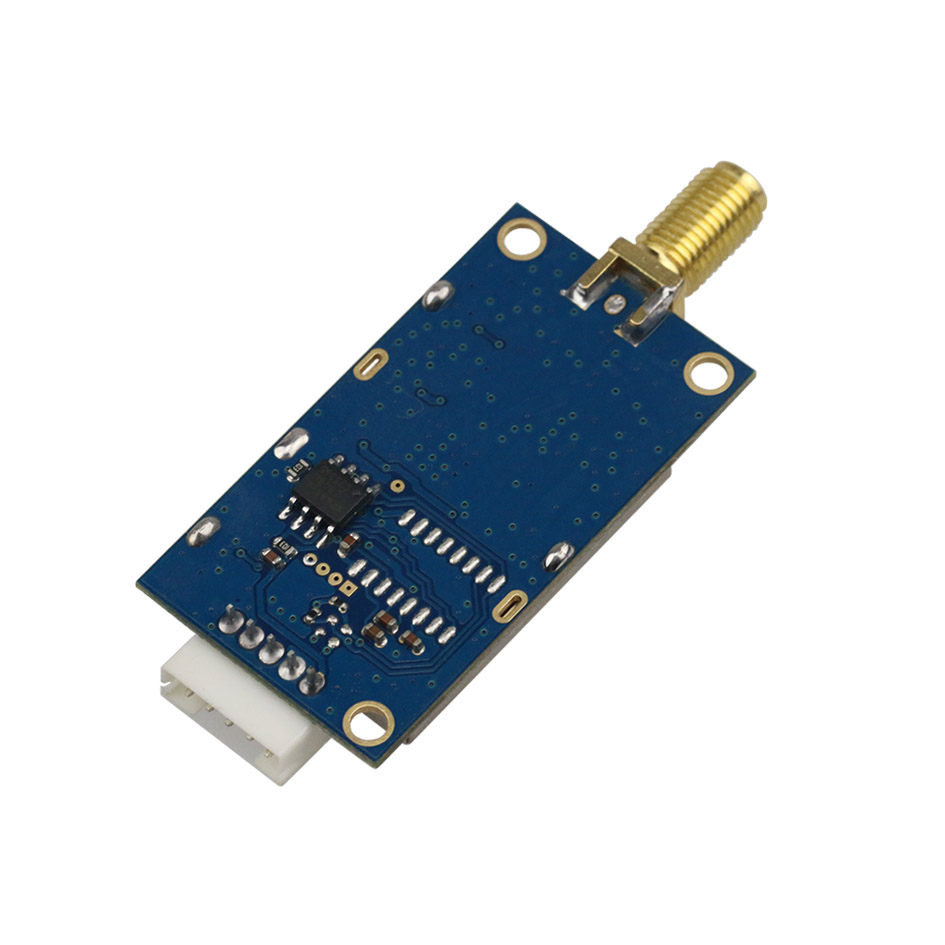

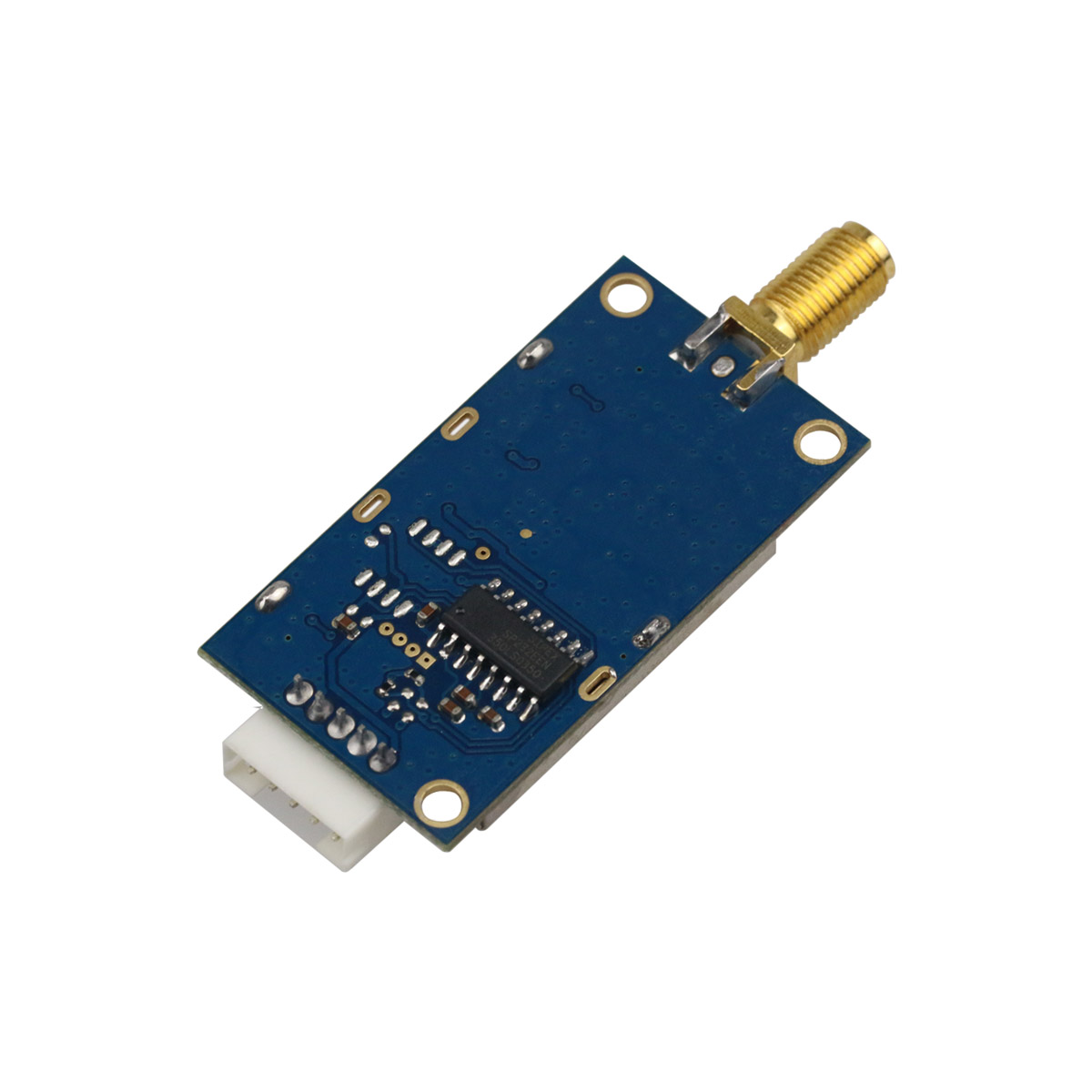

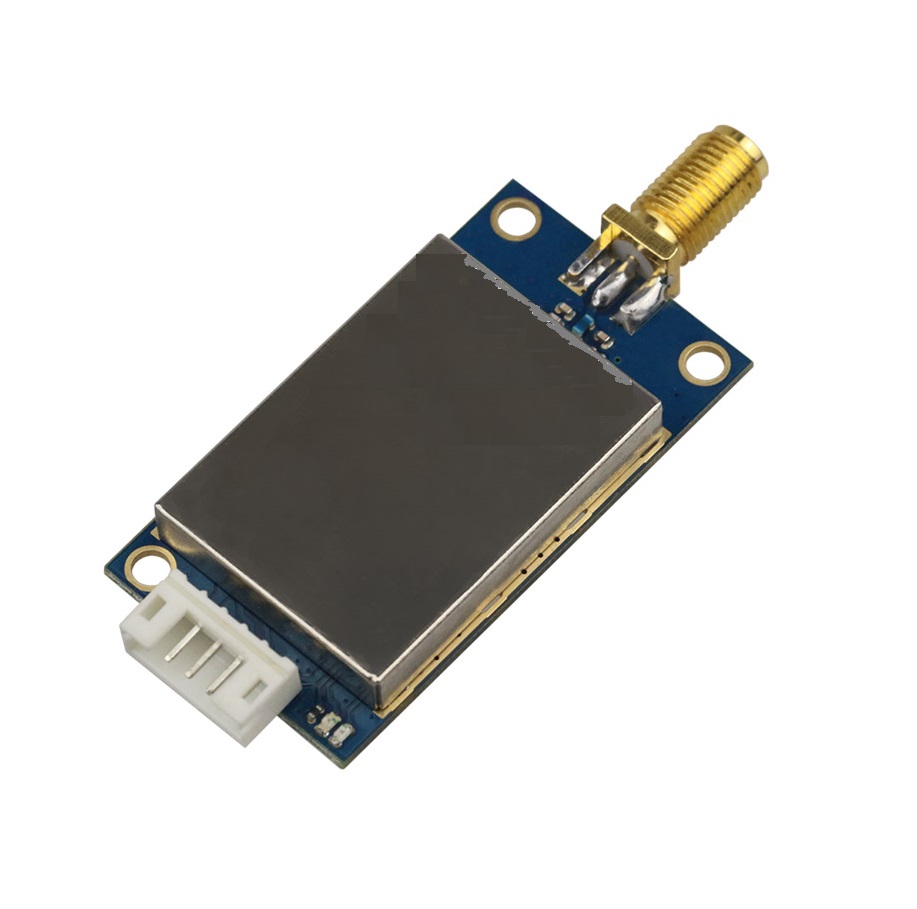

Ultra Long Range LoRa Radio Module: RF1276

RF1276 series is a low cost, ultra-low power, high performance transparent two-way semi-duplex LoRa modern with operation at 169/433/868/915 Mhz. RF1276 provides pure lora p2p (peer to peer) data link with RS232 and RS485 port.


THE PREVIOUS ONE Return The next one


    RF1276 series is a low cost, ultra-low power, high performance transparent two-way semi-duplex LoRa module with operation at 169/433/868/915 Mhz. It integrates with high speed MCU from ST and high performance RF IC SX1276. The LoRa modulation make the RF solution transmit signal under noise and the reception sensitivity is up to -148dBm.

    RF1276 is available as "Ready-to-use" , focuses on ease of integration even for non RF specialists, thus limit technological risks, while reducing the development time and cost.


    Feature:



    • Air data rate: 300 - 19200bps, can be configured through RF tool
    • UART data rate: 1200 - 57600bps, can be configured through RF tool
    • Frequency: 169MHz,410MHz - 510MHz, 868MHz or 915MHz
    • Working Current: 90mA(TX), 19.2mA(RX), 800uA(wake-up mode), 220uA(Sleeping)
    • wireless RS232 / RS485 cable replacement
    • More than 32 channels
    • parity of series COM: 8E1/8N1/8O1
    • LoRa modulation
    • Receive sensitivity: -148dBm(@300bps)
    • UART/TTL, RS232, RS485
    • Exceed 256 bytes data buffer
    • Supply Voltage: 4.5V – 5.5V (the ripple less than ±100mV ) (2.1V -- 3.7V optional)
    • Simply tool for configuration
    • 125KHz Channel spacing(62.5KHz, 250KHz, 500KHz optional)
    • CE, ANATEL, ICASA, FCC certificated
    • Dimension: 44.5mm x 23.6mm x 7.0mm
