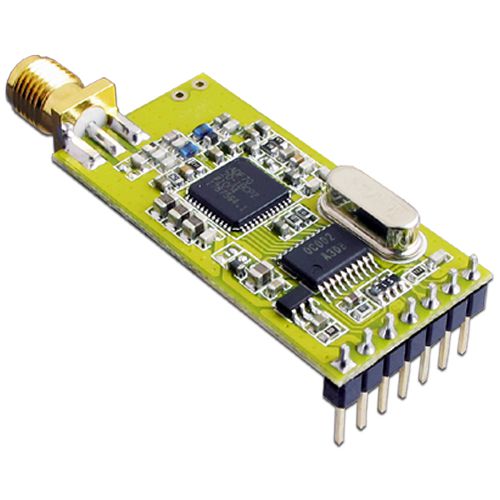

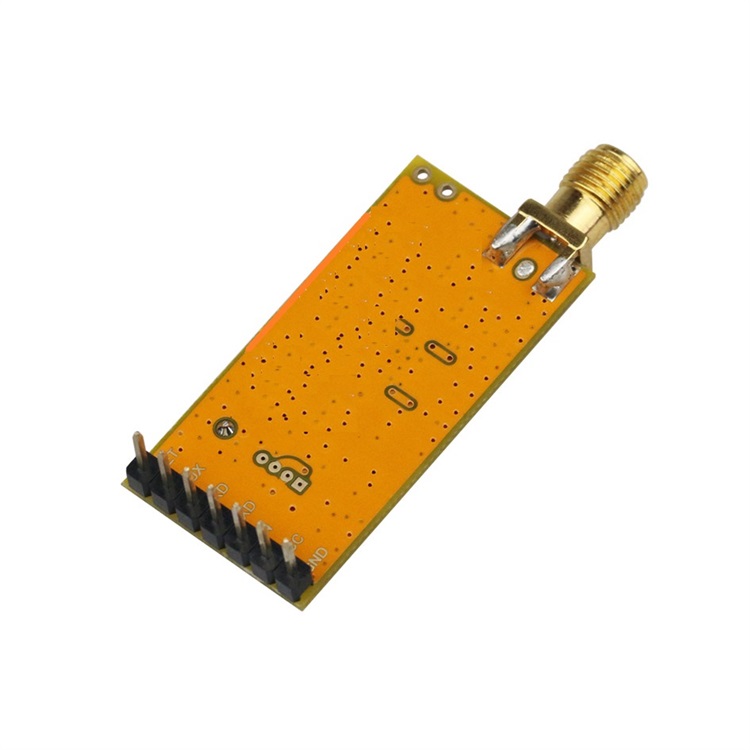

GFSK SDR radio module APC220

APC220 is highly integrated semi-duplex low power transceiver module with high speed MCU and high performance RF IC. Utilizing high efficiency forward error correction with interleaving encoding (FEC) technology, it makes anti-interference ability and reception sensitivity greatly improved.

THE PREVIOUS ONE Return The next one





    • RF line-in-sight range: 1800meters (@1200bps)
    • Frequency: 410-440MHz or 470-510MHz or 850-890 MHz or 900-950MHz
    • Channel spacing: 200 KHz
    • Transparent -virtual wire- operation
    • Output Power: 100mW (adjustable)
    • Good reception sensitivity: -121dBm@1200bps
    • High efficient cyclic shift interleaving and FEC
    • GFSK modulation
    • Parameters setting by RF tool
    • 256Bytes data buffer
    • Interface: TTL/UART
    • Easy control working status through software
    • Power supply: 4.5V--5.5V (2.1V -- 3.7V optional)
    • Power Consumption: 28mA (RX), 100mA (TX), 3µA(Idle)
    • XBEE alternative
    • Operating temperature: -30℃—85℃
    • Size: 37.5*18.3*7.0mm
