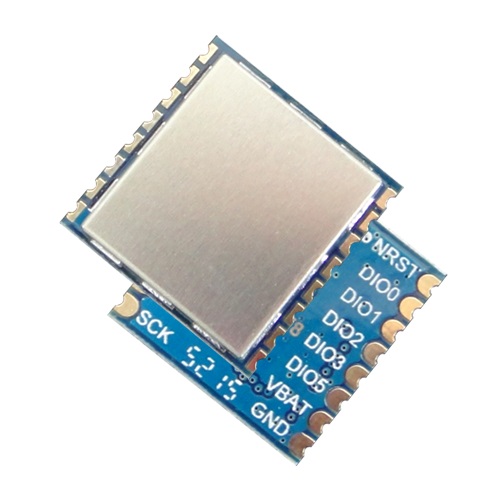

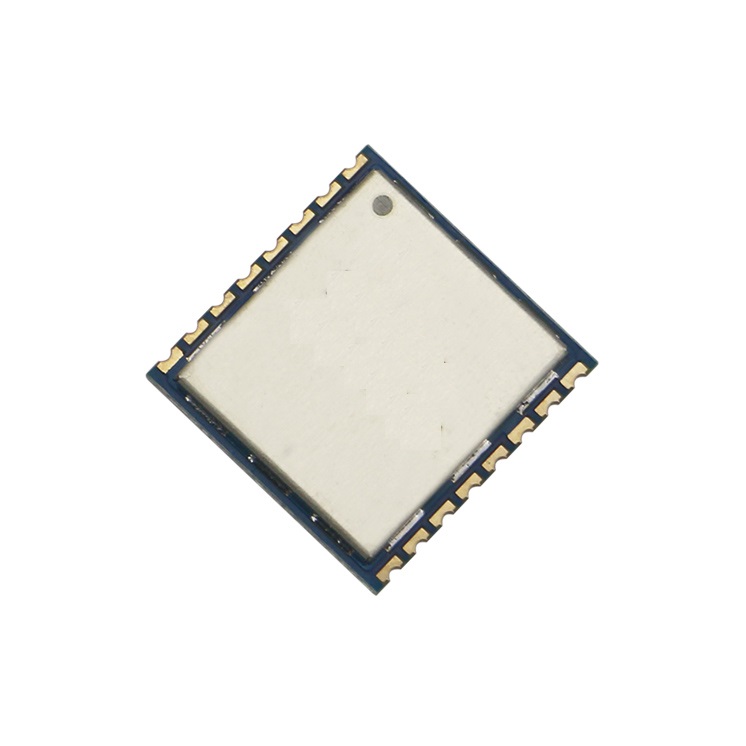

Front-end LoRa module RF1276F

RF1276F is a type of low cost RF front-end transceiver module based on SX1276 from Semtech Corporation. It keeps the advantages of RFIC SX1276 but simplifies the circuit design. The high sensitivity (-148dBm) in LoRa modulation and 20dBm high power output make the module suitable for low range and low data rate applications.


    RF1276F is a type of low cost RF front-end transceiver module based on SX1276 from Semtech Corporation. It keeps the advantages of RFIC SX1276 but simplifies the circuit design. The high sensitivity (-148dBm) in LoRa modulation and 20dBm high power output make the module suitable for low range and low data rate applications.





    Features:


    Frequency Band: 169MHz,433MHz,868MHz

    Modulation: FSK/GFSK/MSK/LoRa
    SPI Data Interface
    Sensitivity: -148dBm
    Output Power: +20dBm
    Data Rate: <300 kbps
    127dB dynamic Range RSSI
    Excellent blocking immunity
    Preamble detection
    Automatic RF sense and CAD monitor
    Built-in bit synchronizer for clock recovery
    Packet engine up to 256 bytes with CRC
    Working Temperature: -40°C ~+80°C
    Build-in temperature sensor
    Standby current:  ≤ 1uA
    Supply voltage: 1.8~3.6V
