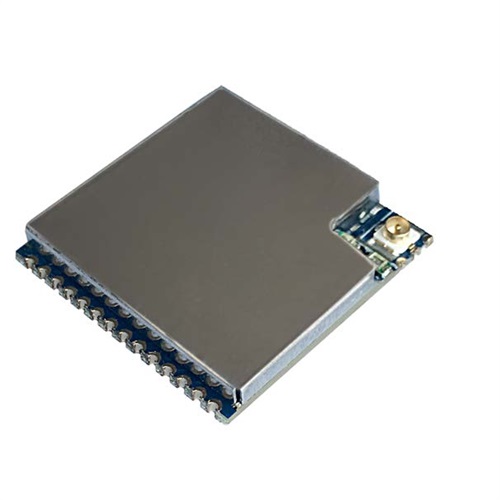

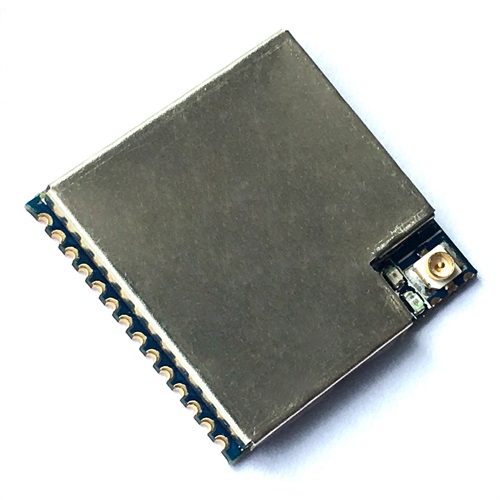

Mesh LoRa Radio Module RF1276MN

RF1276MN is a high-performance, low power consumption, long distance micropower wireless MESH network module. It integrates with embedded MESH network protocol.

THE PREVIOUS ONE Return The next one

    RF1276MN is a high-performance, low power consumption, long distance micropower wireless MESH network module, the embedded wireless MESH network protocol, the MESH is distributed peer-to-peer MESH network, can make full use of the network routing redundancy, excellent self-healing network, stability, and excellent data throughput, the network time is very short,can work as long as it is connected to the power supply, supporting level 7 routing, network coverage reached more than 10 km.


    Feature：

    • Based on LoRaTM spread spectrum modulation technology.
    • 380-510MHz, 868MHz and 902-928MHz Free application frequency band
    • Production without debugging,3.3 -5.5V wide voltage range, can be customized for 2.1-3.6V
    • Micropower emission, standard power is 100mw,7 levels can be set.
    • Receiving sensitivity up to -148dBm,Maximum launch power +20dBm
    • Adopt high efficiency forward error correction coding technology and frequency hopping mechanism, strong anti-interference ability, low error rate.
    • MESH protocol hierarchical processing, provides a stable link.
    • Distributed routing, a mesh network completely.
    • Work as long as it is connected to the power supply,only needs to be done for the first time communication network function, establish a routing table.
    • Module parameters can be set by software or microcontroller command flexibly
    • 1.5mm standard half hole welding disk, easy for embedded installation.
    • Built-in watchdog to ensure long-term reliable and stable operation.
    • Open space single effective communication distance can be 2-4km.
    • CE/RED certificated
