Front end GFSK module RF4432RF

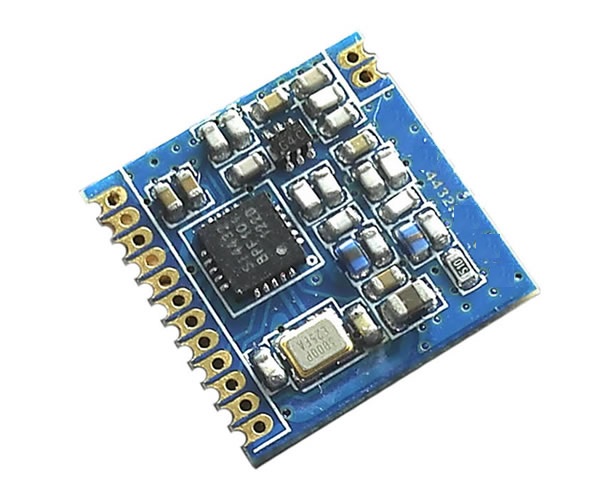

RF4432RF is a type of low cost RF front-end transceiver module based on Si4432 from Silicon-lab. It keeps the advantages of RFIC Si4432 but simplifies the circuit design. The high sensitivity (-120dBm) in FSK modulation and 20dBm high power output make the module suitable for low range and low data rate applications.

THE PREVIOUS ONE Return The next one

    RF4432RF is a type of low cost RF front-end transceiver module based on Si4432 from Silicon-lab. It keeps the advantages of RFIC Si4432 but simplifies the circuit design. The high sensitivity (-120dBm) in FSK modulation and 20dBm high power output make the module suitable for low range and low data rate applications.


    Feature:



    • RF line-in-sight range: 1000meters (@9600bps)
    • Frequency: 387-464MHz or 868-915MHz
    • Output Power: 100mW (adjustable)
    • Good reception sensitivity: -114dBm@1200bps
    • FSK modulation
    • Interface: SPI
    • Power supply: 1.8—3.6V
    • Power Consumption: 16mA (RX), 30mA (TX)
    • Operating temperature: -30℃—85℃

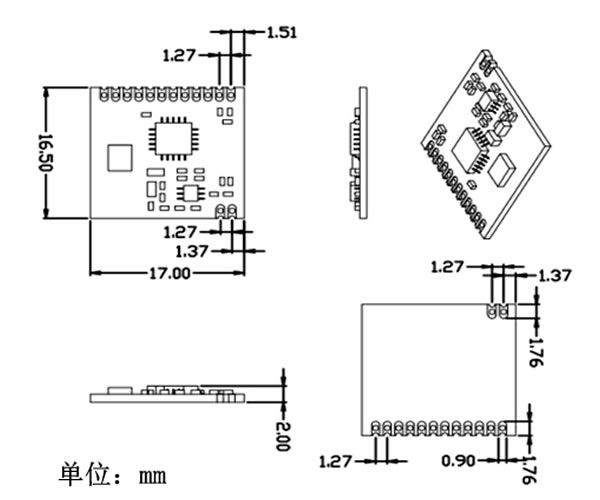

    • Size: 16.5*17*2.0 mm
