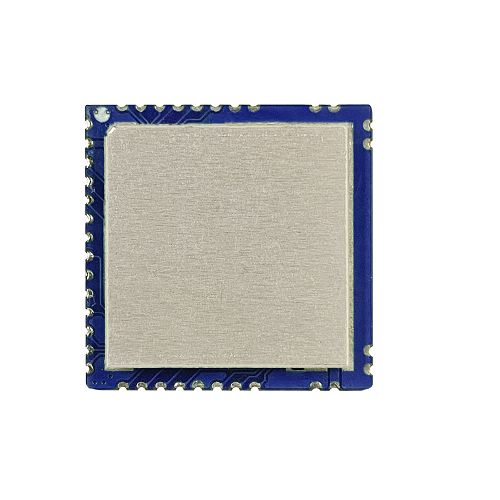

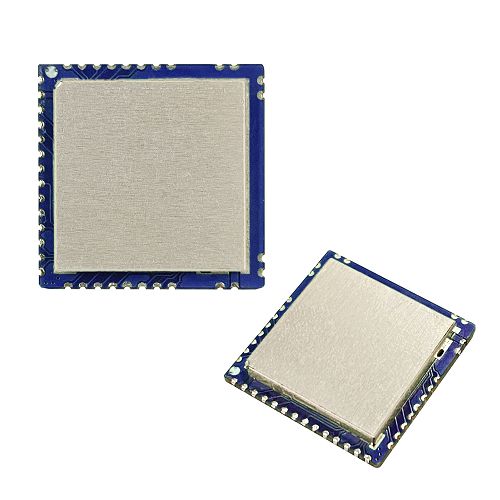

Embedded LoRa module RF6610M

RF6610M series is a low cost, ultra-low power, high performance two way semi-duplex LoRa modulation transceiver with operation at 433Mhz, 868Mhz and 915Mhz. It integrates with 32 bit high speed low-powered MCU and high performance ASR6601. ASR6601 is a combo consisted of RF chip SX1262 and Arm Cortex M4 core MCU.

THE PREVIOUS ONE Return The next one

    RF6610M series is a low cost, ultra-low power, high performance two way semi-duplex LoRa modulation transceiver with operation at 433Mhz, 868Mhz and 915Mhz. It integrates with 32 bit high speed low-powered MCU and high performance ASR6601. ASR6601 is a combo consisted of RF chip SX1262 and Arm Cortex M4 core MCU. Adopting high efficiency forward error correction with interleaving encoding (FEC) technology, it makes anti-interference ability and reception sensitivity greatly improved. That guarantees good performance in the harsh environment such as some industrial application.


    Feature：


    • 5000 meters of communication distance（300bps）
    • Output power: Max150mW (22dBm) (7 levels adjustable)
    • Air data rate: 300 - 62500bps, can be configured through RF tool
    • UART data rate: 1200 - 115200bps, can be configured through RF tool
    • Frequency: 430MHz-510MHz, 868MHz, 902MHz-928MHz
    • Working Current: 120mA(TX), 12mA(RX),2.0uA(Sleeping)
    • Parity of series COM: 8E1/8N1/8O1
    • LoRa modulation
    • Receive sensitivity: -148dBm(@600bps)
    • UART/TTL
    • Exceed 256 bytes data buffer
    • Supply Voltage: 2.1V – 3.7V  (4.5V – 5.5V optional)
    • 125KHz-500KHz Channel spacing
    • Dimension: 23.0mm *23.0mm *3.00mm
