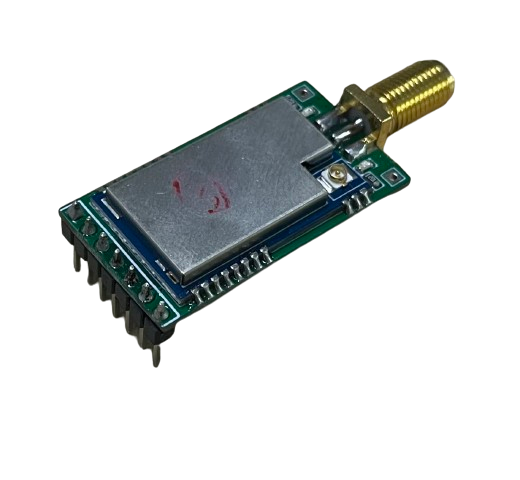

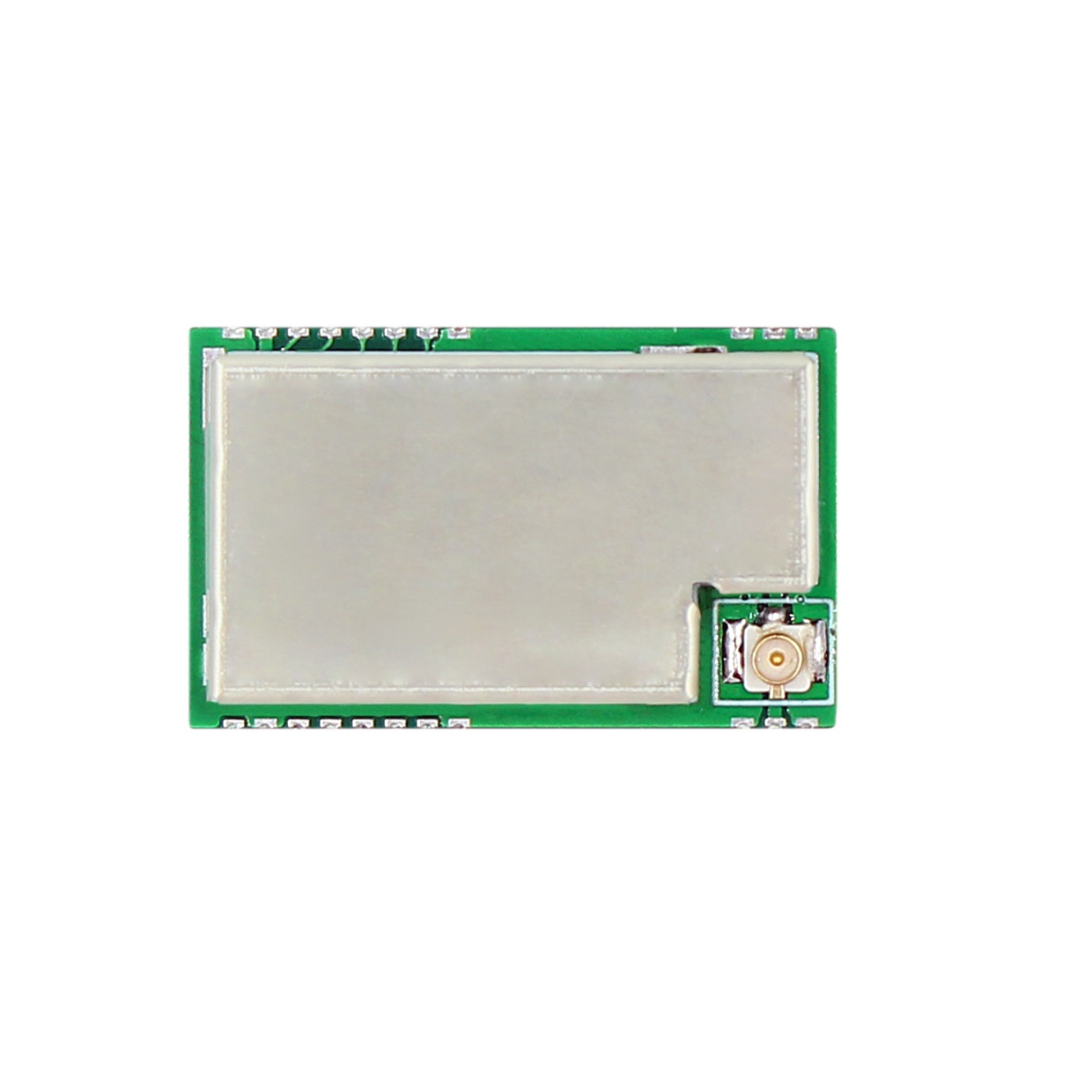

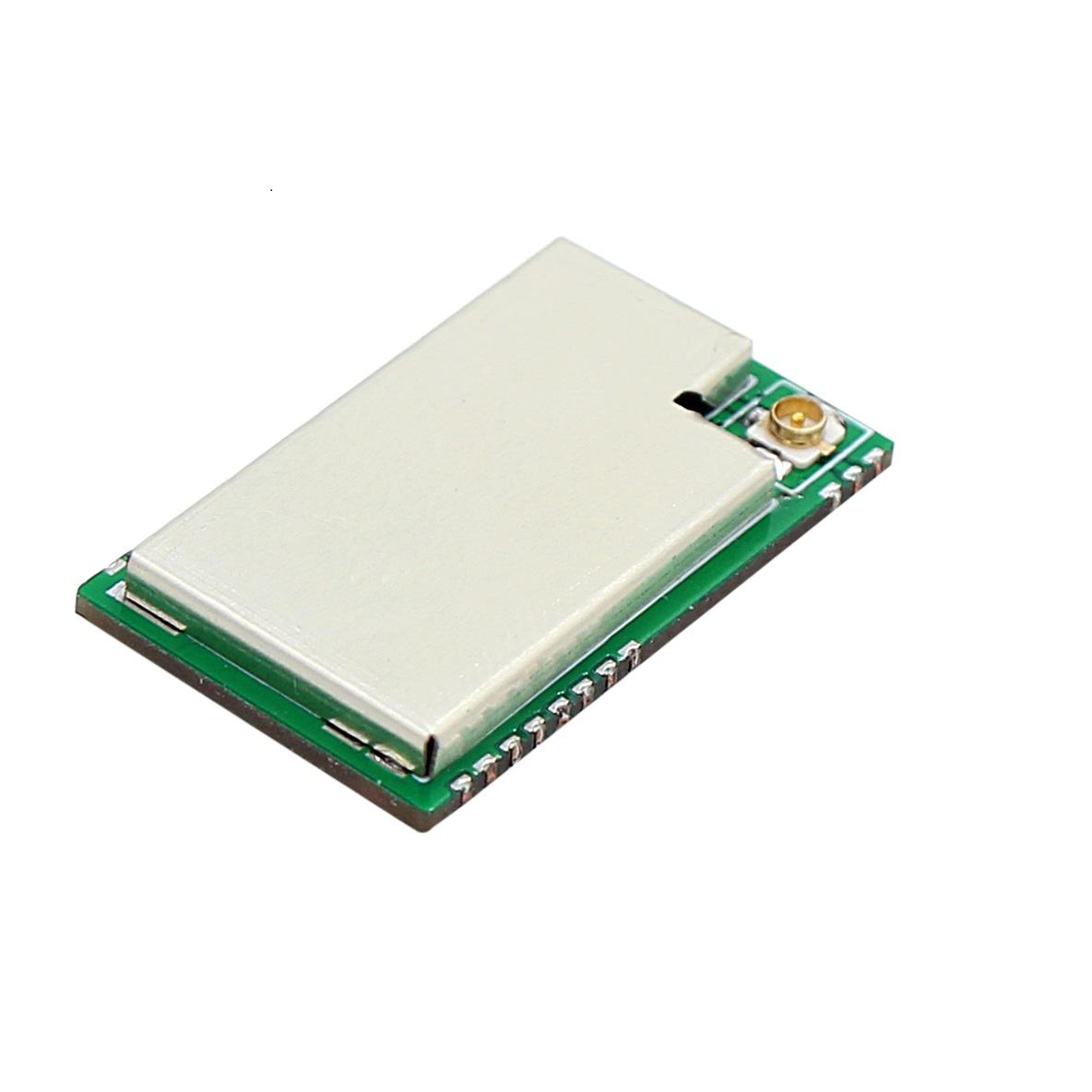

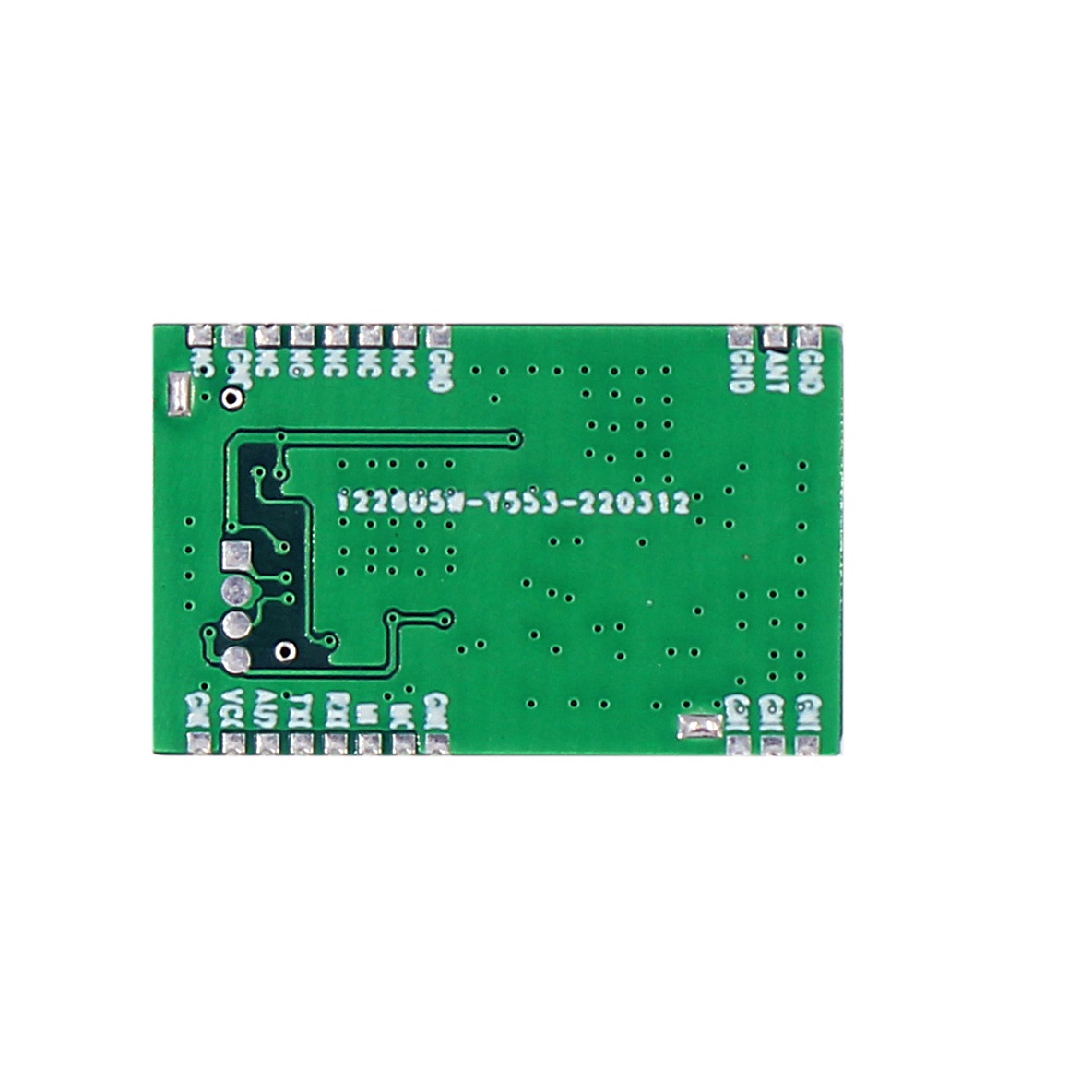

Embedded LoRa module RF6610N

RF6610N series is a low cost, ultra-low power, high performance two way semi-duplex LoRa modulation transceiver with operation at 433Mhz, 868Mhz and 915Mhz. It integrates with 32 bit high speed low-powered MCU and high performance ASR6601. ASR6601 is a combo consisted of RF chip SX1262 and Arm Cortex M4 core MCU.

THE PREVIOUS ONE Return The next one

    RF6610N series is a low cost, ultra-low power, high performance two way semi-duplex LoRa modulation transceiver with operation at 433Mhz, 868Mhz and 915Mhz. It integrates with 32 bit high speed low-powered MCU and high performance ASR6601. ASR6601 is a combo consisted of RF chip SX1262 and Arm Cortex M4 core MCU. Adopting high efficiency forward error correction with interleaving encoding (FEC) technology, it makes anti-interference ability and reception sensitivity greatly improved. That guarantees good performance in the harsh environment such as some industrial application.


    Feature：


    5000 meters of communication distance（300bps）

    Output power: Max150mW (22dBm) (7 levels adjustable)

    Air data rate: 300 - 19200bps, can be configured through RF tool

    UART data rate: 1200 - 115200bps, can be configured through RF tool

    Frequency: 430MHz-510MHz, 868MHz, 902MHz-928MHz

    Working Current: 120mA(TX), 12mA(RX),2.0uA(Sleeping)

    Parity of series COM: 8E1/8N1/8O1

    LoRa modulation

    Receive sensitivity: -148dBm(@600bps)

    UART/TTL

    Exceed 256 bytes data buffer

    Supply Voltage: 2.1V – 3.7V  (4.5V – 5.5V optional)

    125KHz-500KHz Channel spacing

    Dimension: 26.0mm *16.0mm *3.15mm
